PSB-B200-800型半自动板材机

您的当前位置: 首 页 >> 半自动板材机 >>

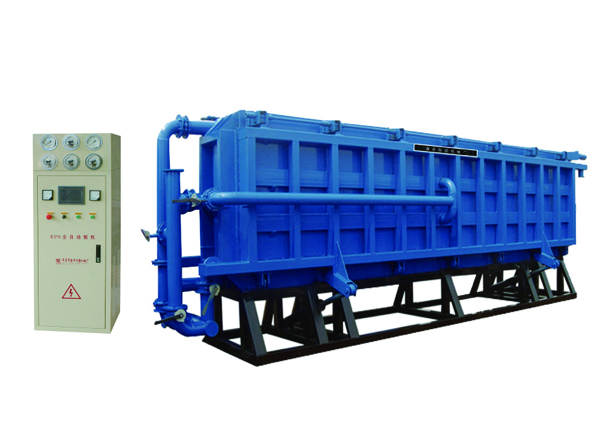

PSB-B200-800型半自动板材机

  • 所属分类:半自动板材机

  • 点击次数:
  • 发布日期:2017/03/06
  • 在线询价
详细介绍


产品介绍


  • 采用优质型钢焊接而成,并经过时效热处理,强度高,不变形,能承受高密度制品的膨胀力。

  • 机器模腔表面采用特制铝合金主板,热传导效率高,抗拉强度好,寿命长。

  • 机器采用国外先进独特的穿透加热成型工艺,设置变压鼓风机吸料,冷却,穿透力强,粘接性好,用汽少,成型快,含水量低,保证产品内外一致。


PRODUCT INTRODUCTION

  • 1.Ince this machine is made of high quality profiled bars under the timely heat treatment,so it can bear expansibility of hight-consistency products whithout transmulation and have a high-intensity.

  • 2.The machine mould antrum is made of special ainico main plate with good efficiency for high heat exchange,top class anti-extension and can be use for a long time.

  • 3.It adopted the advanced intermational technice of penetrate heating and moulding with the transformer fan to sucking the materials out,cooling caused good penetrability and joint,the hing speed to molding,to guarantee the consistency both inside and outside of the plant,so the productivity increased geminated.



技术参数

项 目单位/型号PSB-B200PSB-B300PSB-B400PSB-B600PSB-B800
模腔内径尺寸 mm2040x1020x5303060x1250x6304080x1240x6306120x1240x6308160x1240x630
2040x1020x6304080x1030x5306120x1030x6308160x1030x630
模腔体积1.10(1.31)2.393.18(2.22)4.78(3.97)6.37(5.29)
制品密度/比重kg/m³6-306-306-306-306-30
生产效率(标准条件) piece/h6-106-106-96-96-9
蒸汽压力Mpa0.4-0.80.4-0.80.4-0.80.4-0.80.4-0.8
压缩空气进口通径mm2525252525
蒸汽进口通mm80100100125150
电源V380380380380380
功率KW8.58.5111313
最大外型尺寸mm3600x2000x27504500x2150x29504500x2150x29507500x2150x29509500x2150x2950
整机重量kg22002800380061007800
