PSB-Q200-800型普通全自动板材机

您的当前位置: 首 页 >> 普通全自动板材机 >>

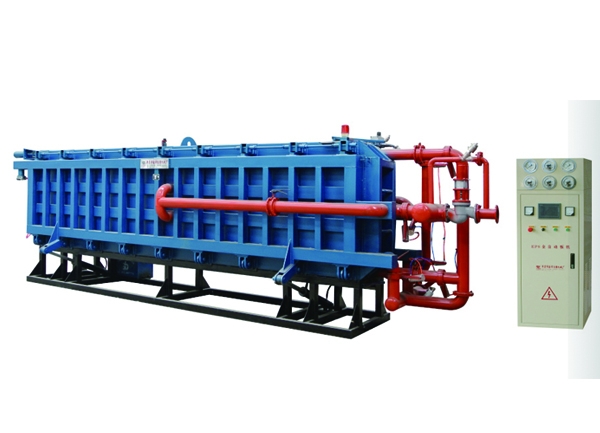

PSB-Q200-800型普通全自动板材机

  • 所属分类:普通全自动板材机

  • 点击次数:
  • 发布日期:2017/03/06
  • 在线询价
详细介绍


产品介绍


  • 采用优质型钢焊接而成,并经过时效热处理,强度高,不变形,能承受高密度制品的膨胀力。

  • 机器采用PLC全电脑触摸式显示荧屏控制,使机器的开模、合模、上料、加热、保温、真空冷却、脱模顶出成品,实现全自化循环作业。

  • 模腔表面采用特制铝合金主板,热传导效率高,抗拉强度好,寿命长。

  • 采用国外先进独特的穿透加热成型工艺,设置高压引风机吸料,冷却,穿透力强,粘接性好,用汽少,成型快,含水量低,保证产品内外一致。



PRODUCT INTRODUCTION

  • 1.The machine is welded by high-quality shape steel and treated in an effective thermal way which can bring a high strength,on-deformation and high resistance to the expansive force from high-density products.

  • 2.The machine is controlled by PLC full computer touch screen displayer which can realize a full automatic cycle operation of mounld opening,mould closing,material feeding,heating,heat preserving,vacuum cooling,demoulding and extruding-out of finished products.

  • 3.The surface of the  mould is made of special aluminum alloy which can realize a high effciency of heat conduction,favorable tensile strength and long service life.

  • 4.The machine is integreated with overseas advanced and special penetrating and heating techniques for shaping,and a high pressure suction fan for material feeding,cooling with a strong penetrability,favorable adhesivity,low consuption of steam,high speed of shaping and low water content so as to ensure the unifomity of inside and outside of the product.



技术参数

项 目单位/型号PSB-600PSB-800
模腔内径尺寸 mm6120x1240x6308120x1240x630
模腔体积4.776.34
制品密度/比重kg/m³4.5-304.5-30
生产效率(标准条件) piece/n6-96-9
蒸汽压力Mpa0.6-0.80.6-0.8
压缩空气进口通mm150150
蒸汽进口通mm8080
电源V380380
功率KW1313
最大外型尺寸mm7500x2150x29509500x2150x2950
整机重量kg950010500
