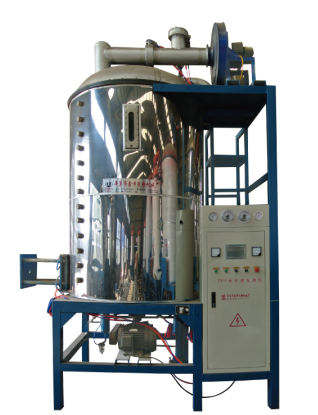

全自动间歇式预发机(一二次发泡)

  • 所属分类:全自动间歇式(一二次)发机

  • 点击次数:
  • 发布日期:2017/03/07
  • 在线询价
详细介绍


产品介绍


  • 机器采用PLC全电脑触摸式显示荧屏控制,实现上料、供气、温控、发泡、出料的全过程自动循环作业,定量压缩上料,准确迅速。

  • 机器采用全封闭式不锈钢桶恒压力发泡,热效率高节约蒸汽,缩短熟化过程,发泡效率高。机器采用名牌优质气动元件,质量可靠,操作方便,保证温度的精确控制,便发泡的珠粒、密度均匀。

  • 采用不锈钢板制作而成,结构好,便于维修,调整进料,以达到所需求颗粒容量。140型可分别进行一次发泡和二次发泡。



PRODUCT INTRODUCTION

  • It selected the PLC entirely computer touching display controlling system form the materials putting in,supplying of the steam,thermostatic to the expanding,manufaceuring the products automatically for the complete period of process periodically.thus quantificationally compress the materials filling to be much more quickly and exactly.

  • It adopted the periodically.thus quantificationally compress the materials filling to be much more quickly and exactly.It adopted the expanding method in full-closed stainless bucket isobarically to made the heating thermal efficiency to be high and save the steams to short the process of riping and increase the foaming rate.

  • The expander is made of famous good quality peneumatic component to ensure the high quality with convenient operating technique,this guaranteee the exact control of the temperature and made the consistency of the granules symmetrically.



技术参数

项 目单位PSF 140 I型(一、二次)
桶直径 mm1400
容积3.1
蒸汽压力mpa0.6-0.8
空气压力mpa0.6-0.8
发泡密度kg/m³4.5-40
生产能力kg/h500-1000
装机功率kw13
外形尺寸mm4500x2150x2950
整机重量kg2500
