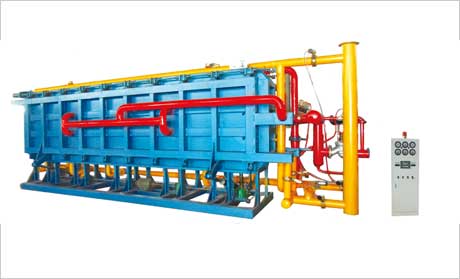

PSB-Q600-800型可调式全自动板机

您的当前位置: 首 页 >> 可调式全自动板材机 >>

PSB-Q600-800型可调式全自动板机

  • 所属分类:可调式全自动板材机

  • 点击次数:
  • 发布日期:2017/03/13
  • 在线询价
详细介绍


产品介绍


  • 采用新型随动气室,从根本上解决了板材上下受热不均导致变形的问题。

  • 采用优质型钢焊接而成,并经过时效热处理,强度高,不变形,能承受高密度制品的膨胀力。

  • 机器采用PLC全电脑触摸式显示荧屏控制,使机器的开模、合模、上料、加热、保温、真空冷却、脱模顶出成品,实现全自化循环作业。

  • 模腔表面采用特制铝合金主板,热传导效率高,抗拉强度好,寿命长。

  • 采用国外先进独特的穿透加热成型工艺,设置高压引风机吸料,冷却,穿透力强,粘接性好,用汽少,成型快,含水量低,保证产品内外一致。


PRODUCT INTRODUCTION

  • 1The model with the air chamber,form the fundamental solution to the plate under uneven heating distortion problem.

  • 2.The machine is welded by high-quality shape steel and treated in an effective thermal way which can bring a high strength,on-deformation and high resistance to the expansive force from high-density products.

  • 3.The machine is controlled by PLC full computer touch screen displayer which can realize a full automatic cycle operation of mounld opening,mould closing,material feeding,heating,heat preserving,vacuum cooling,demoulding and extruding-out of finished products.

  • 4.The surface of the  mould is made of special aluminum alloy which can realize a high effciency of heat conduction,favorable tensile strength and long service life.

  • 5.The machine is integreated with overseas advanced and special penetrating and heating techniques for shaping,and a high pressure suction fan for material feeding,cooling with a strong penetrability,favorable adhesivity,low consuption of steam,high speed of shaping and low water content so as to ensure the unifomity of inside and outside of the product.The cassette mechanism of the machine applies a synchronnus transmission with a large adjustable range for rise and fall so as to realize its multipurpose application.



技术参数

项 目(item)单位/型号PSB-QT600PSB-QT800
模腔最大尺寸 mm6120x1240x6308160x1250x630
模腔最小尺寸 mm6120x790x6308160x930x630
模腔体积4.776.4
制品密度/比重kg/m³4.5-304.5-30
生产效率(标准条件) piece/n6-106-10
蒸汽压力Mpa0.6-0.80.6-0.8
压缩空气进口通mm8080
蒸汽进口通径mm150150
电源V380380
功率KW1313
最大外型尺寸mm7700x2150x32709700x2190x3270
整机重量kg1100013000
